Probador de cables MS6818 advanced wire tester tracker
Probador de cables MS6818 advanced wire tester tracker
Articolo n°: 5776068-02

Probador de cables MS6818 advanced wire tester tracker


Aggiungi al carrello
  • Descrizione del prodotto
  • MS6818 is ideal for tracing cables in underground. With this device you can easily locate fuses and breakers on circuits or find interruptions and short-circuits in cables, for example in floor heating systems. It is also helpful in tracing metallic pipes.


    Product Description

    Applications

    Instruments which are widely used in communication cable construction, electrical cable construction, building pipeline construction, telecommunications cables and power supply circuits. Electric line maintenance, line construction is an indispensable tool for maintenance personnel.

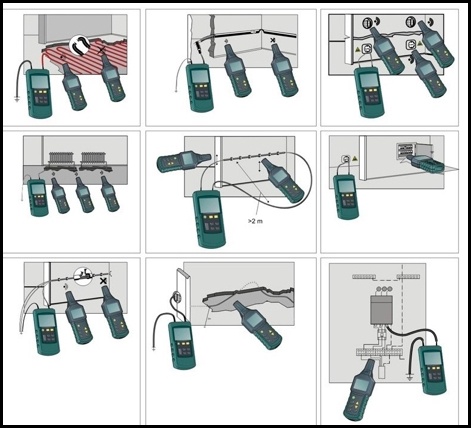

    Detecting cables,electrical lines,water/gas supply pipelines buried in wall or earth

    Detecting interruptions and short circuit in cables and electrical lines buried in wall or earth

    Detecting fuses and assigning current circuits

    Detecting interruptions and short-circults in floor heating

    Detecting sockets and distribution sockets having accidentally been covered by plastering

    Features

    The transmitter is integrated with the function of AC/DC voltmeter,which can measure 12 to 400V AC/DC voltage on a linear basis.

    The screen of the transmitter can display preset transmitting power,transmitted codes,its own battery energy,mains voltage detected,AC/DC status of mains voltage detected,and warning symbol for mains voltage.

    The Transmitter has the function of self-inspection to detect its own working status and to display it on the LCD screen for user's reference

    The sensitivity of the receiver can be adjusted either manually or automatically

    The receiver can sweep frequency automatically,both the transmitter and the receiver can work under mute mode

    Additional transmitters are available for expansion or to differentiate between multiple signals

    compactness,durability and portability

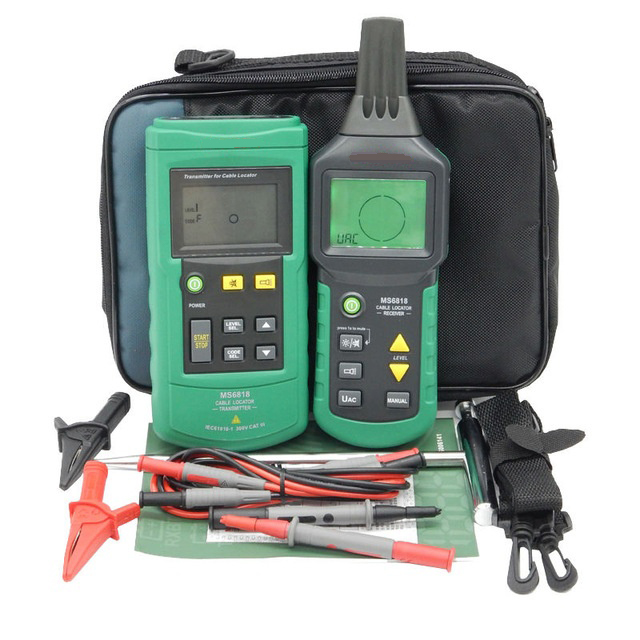

    Package Contents:

    1 x Receiver

    1 x Transmitter

    1 x Test Leads(Black & Red)

    1 x Test Probe(Black & Red)

    1 x Crocodile Clamps(Black & Red)

    1 x Grounding Rod

    1 x User Manual
